Ceiling Mount-LCM1UX2

Ceiling Mount-LCM1UX2

Category: Digital Signage Mounting Solutions

Name: Ceiling Mount-LCM1UX2

Date: 2016-11-17

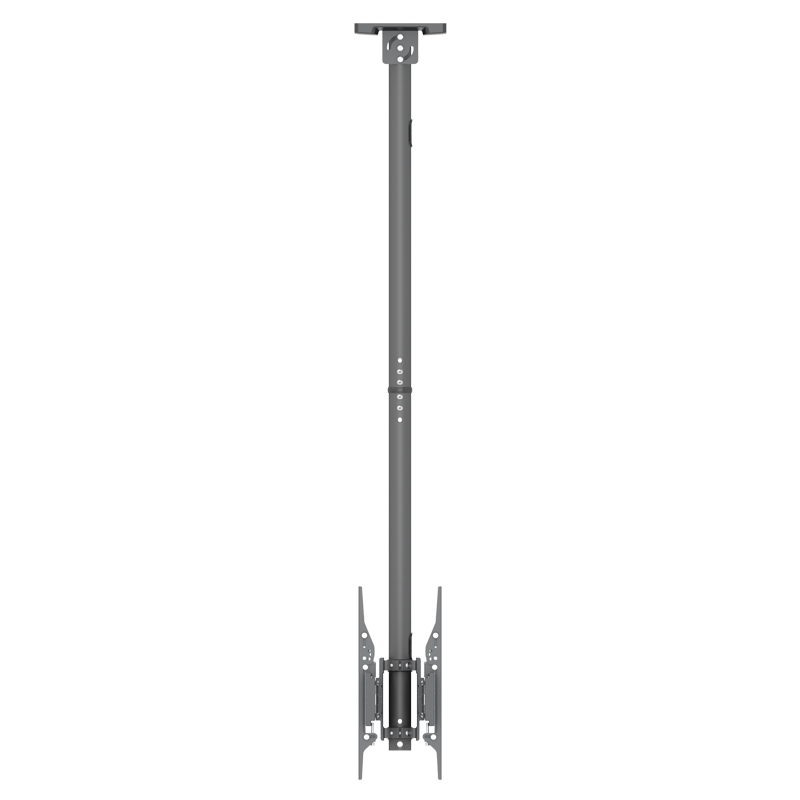

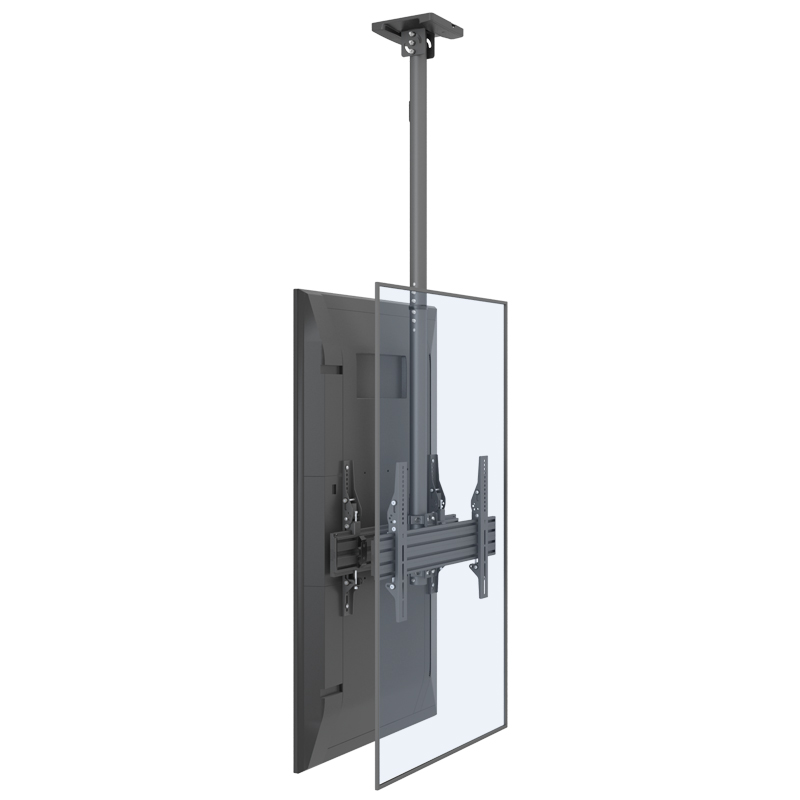

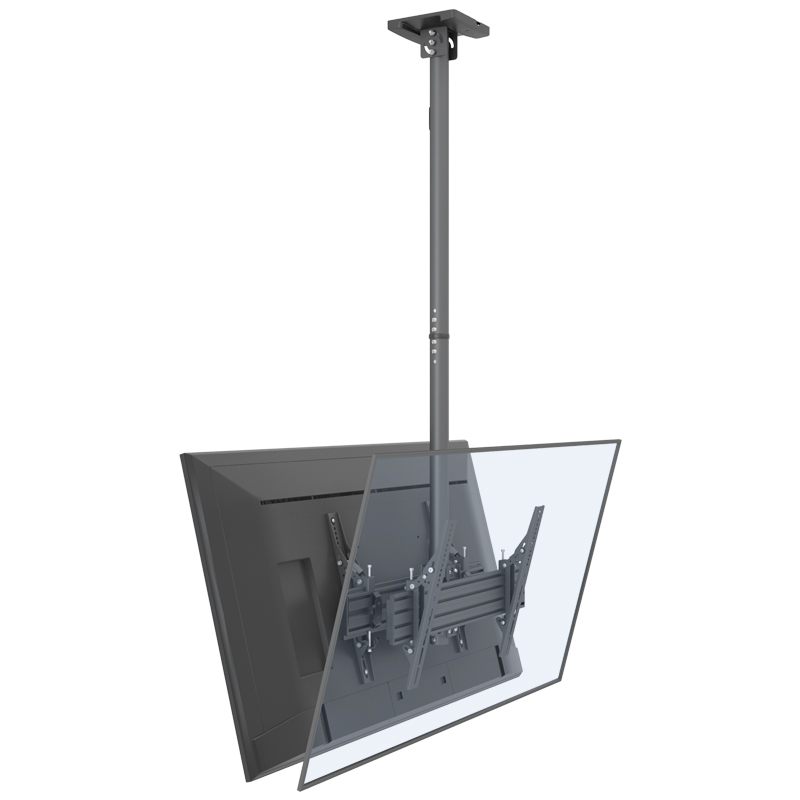

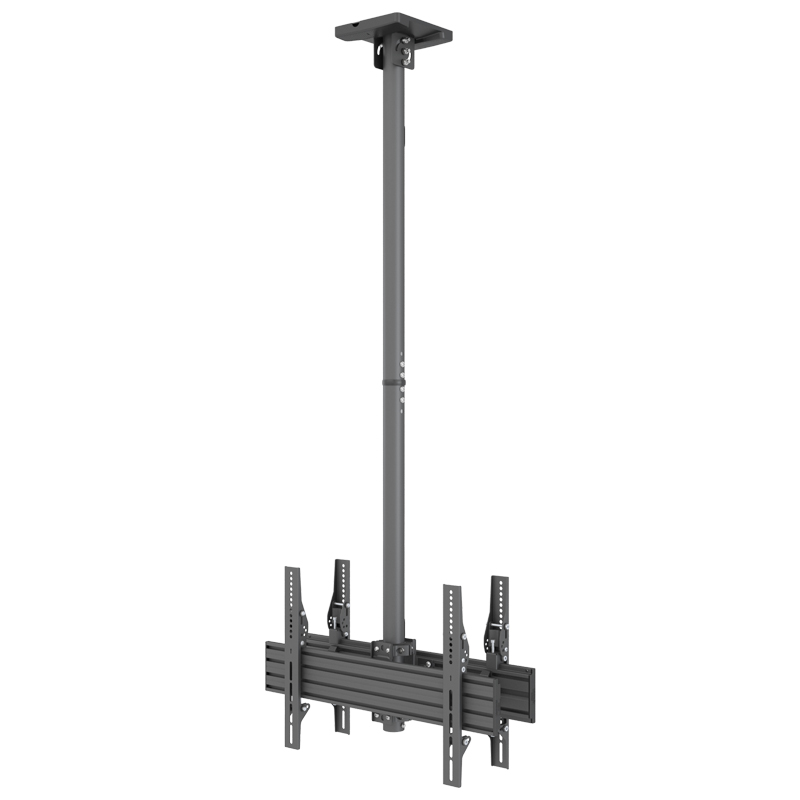

Dual Side-Display Ceiling Mount
Modular, easy to configure, quick to install, and simple to maintain

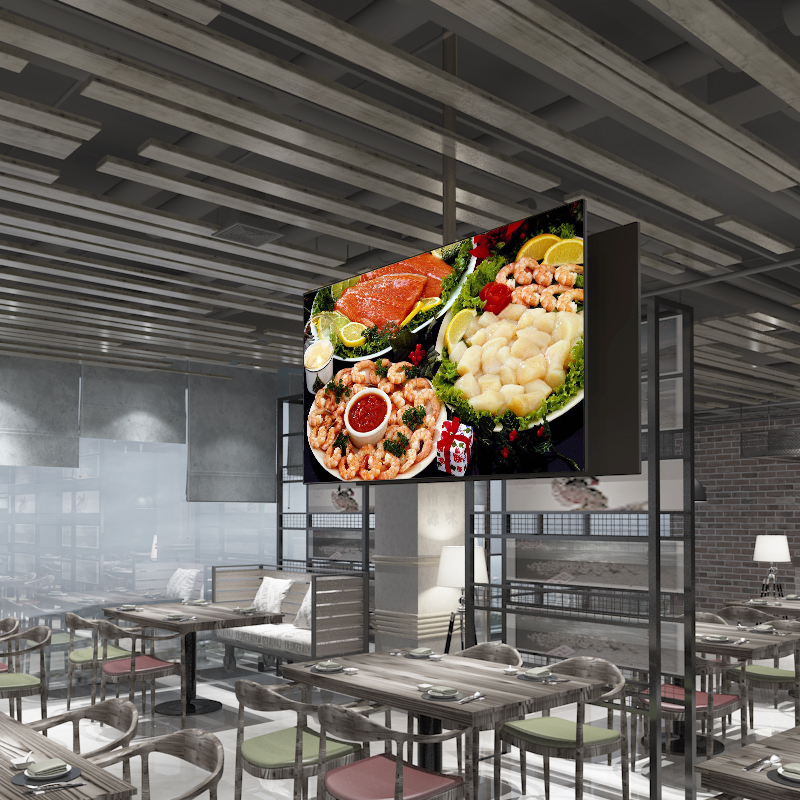

Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials

  • Description


The Menuboard Ceiling TV Mount creates a seamless mounting surface through the aluminum rail. The tilted mounting of the displays allow all displays to be placed side by side and tilted at the same angle with ease creating alignment and true menuboard perfection.

It provides a clean look where each part and detail is made as simple as can be and still service its function. Possible to use in a variety of environments our Menuboards are truly versatile. The Menuboards possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function.


Model Name     LCM1UX2
VESA     From 100x100 to 600x400mm
Support TV Size 32-65inch

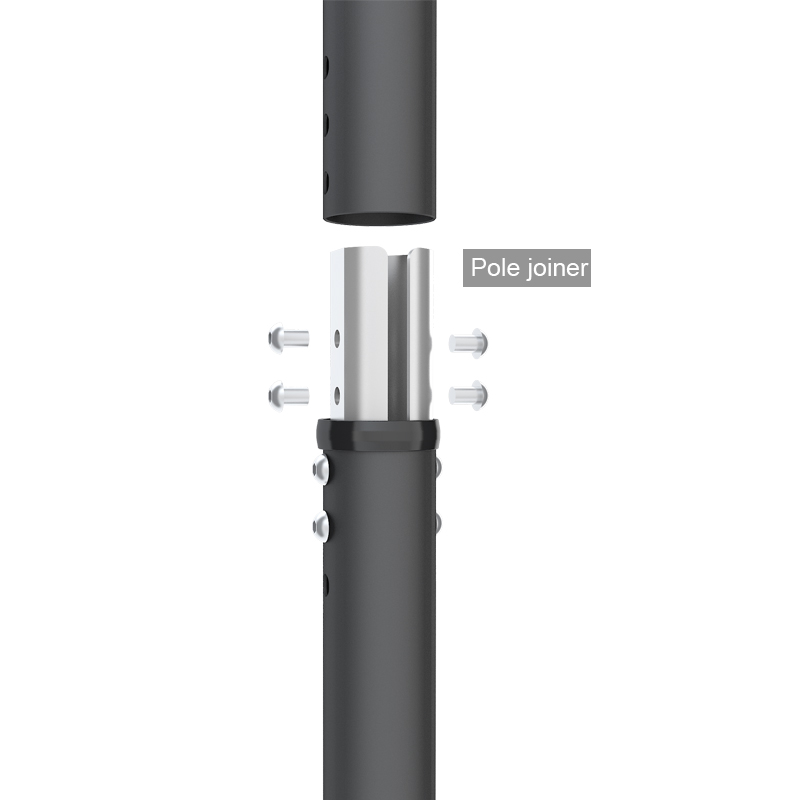

Extension Pipe 1500mm(800mmx2pcs)
Load Capacity 30kg(66lbs) per screen

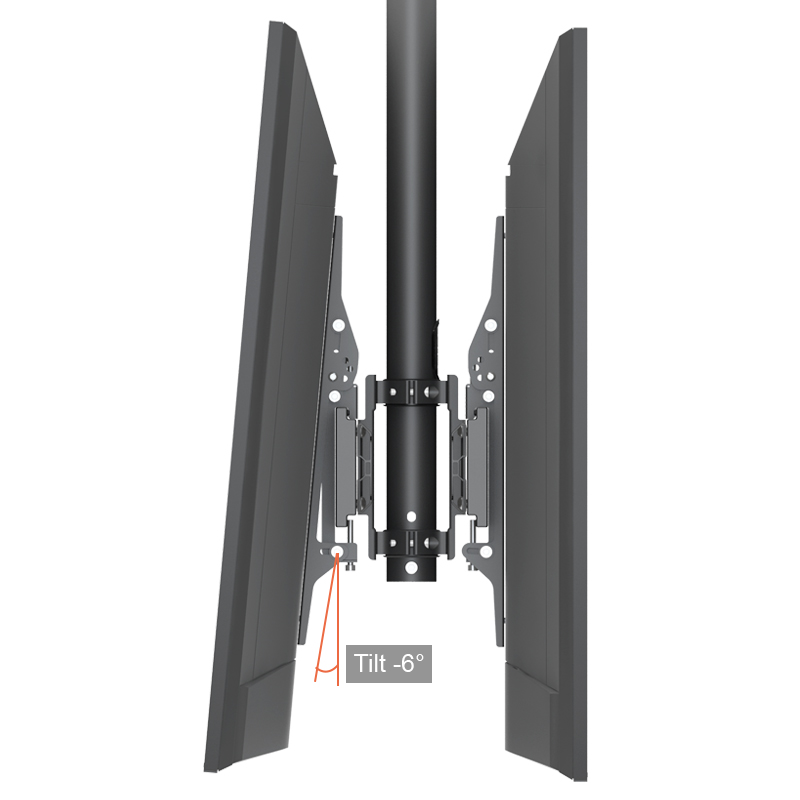

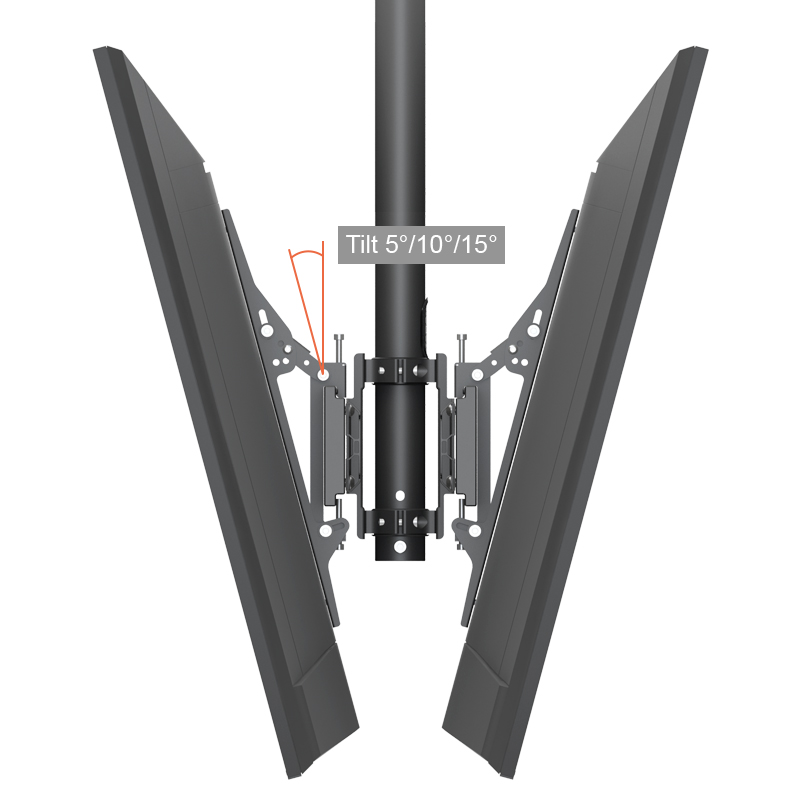

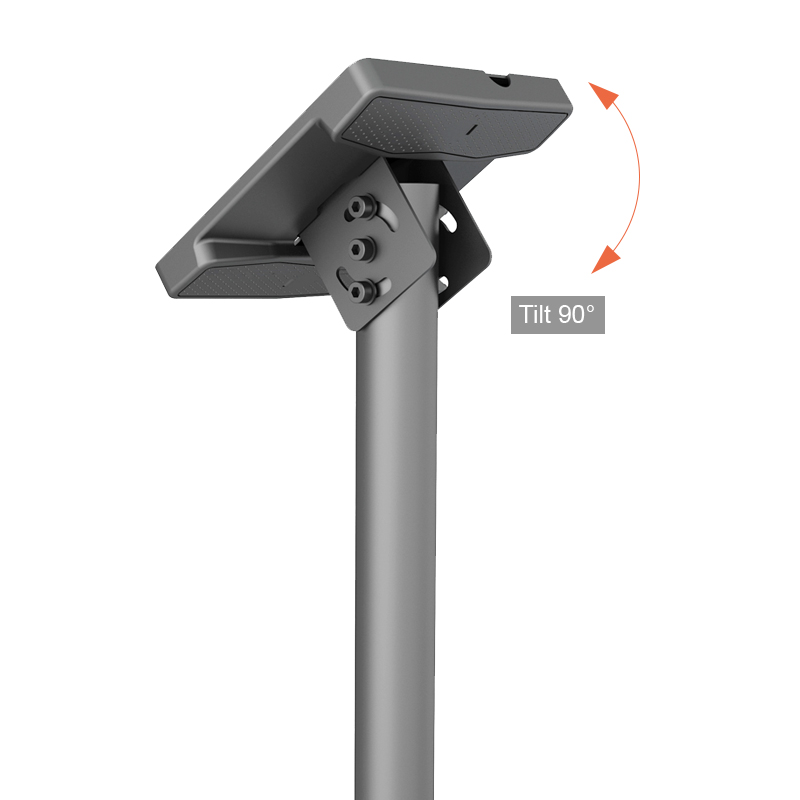

Tilt adjustment -6~+15 degree
Horizontal Adjustment -5~+5 degree
Material  Steel and Aluminum
Color Powder Black Finishing

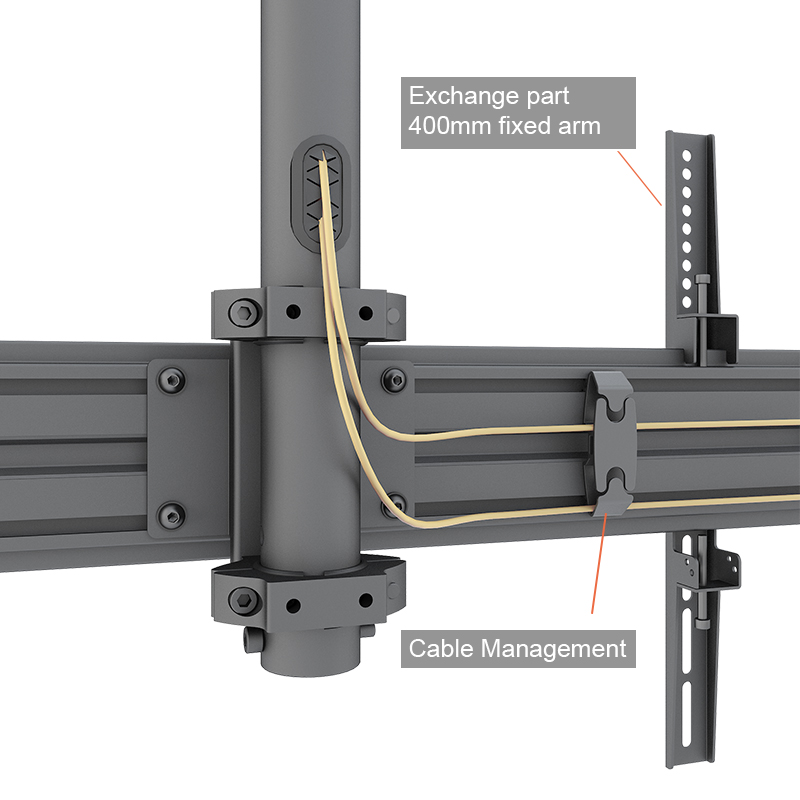

Cable Management     Included

1PCS/CTN , 82X20X18CM , G.W.:13.4KG
