Category: Video Wall Mount
Name: UL Approved VW900
Date: 2016-09-02
UL file No.:E487667
This is a professional mount focusing on multiple screen installations, easy and fast installation and simplified maintenance. Making it an installers dream.
The "Pop out" feature gives easy-access to any display for quick serviceability.
- Description
Hightlights
. Designed to create a fast, simple and seamless installation
. Modular mount with unlimited Video Wall display configurations possible
. Compatible with landscape or portrait mounting
.Tool-less fine adjustments with 8 knobs for a seamless alignment of the displays
. Ideal for recessed areas or where there is a surround around the whole video wall blocking access
. Push in Pop out for easy access and after service
. Integrated cable management system
Specification
|
Model |
VW900 |
|
Support TV Size |
42"-90" |
|
VESA |
from 100x100 to 900x400mm |
|
Tilt |
0° ~ 10° |
|
Max Load Capacity |
50kg(110lbs) |
|
Wall Distance |
110-295mm |
|
Material |
Steel Construction |
|
Color |
Black & White |

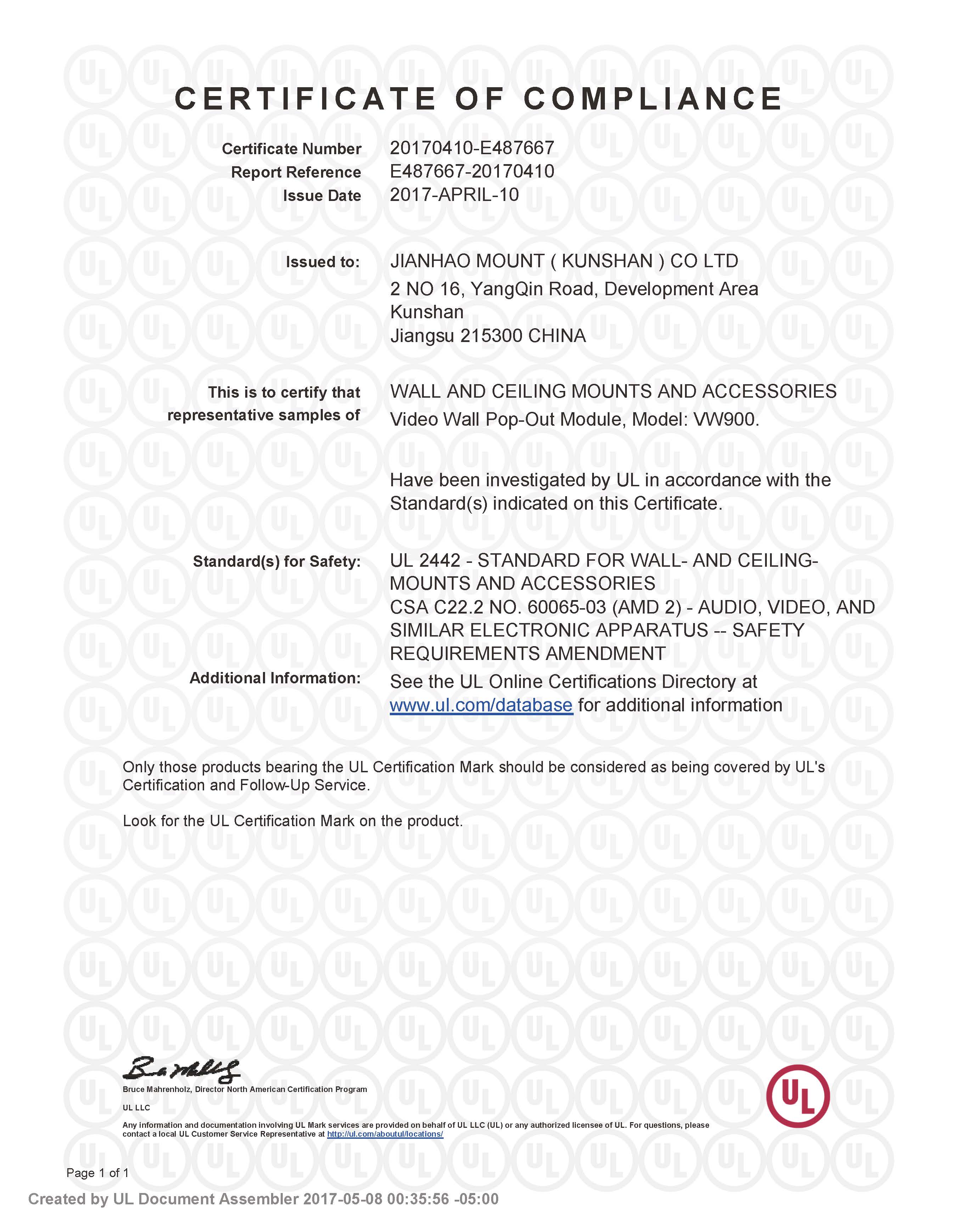

Certificate
