Category: Ceiling Mount
Name: Medium Single TV Ceiling Mount..
Date: 2016-09-06
Ideal for any large screen ceiling application – whether TV viewing or digital signage.
Widely used in a variety of environments this ceilingmount is truly versatile and made with most aspects and installation situations in mind.

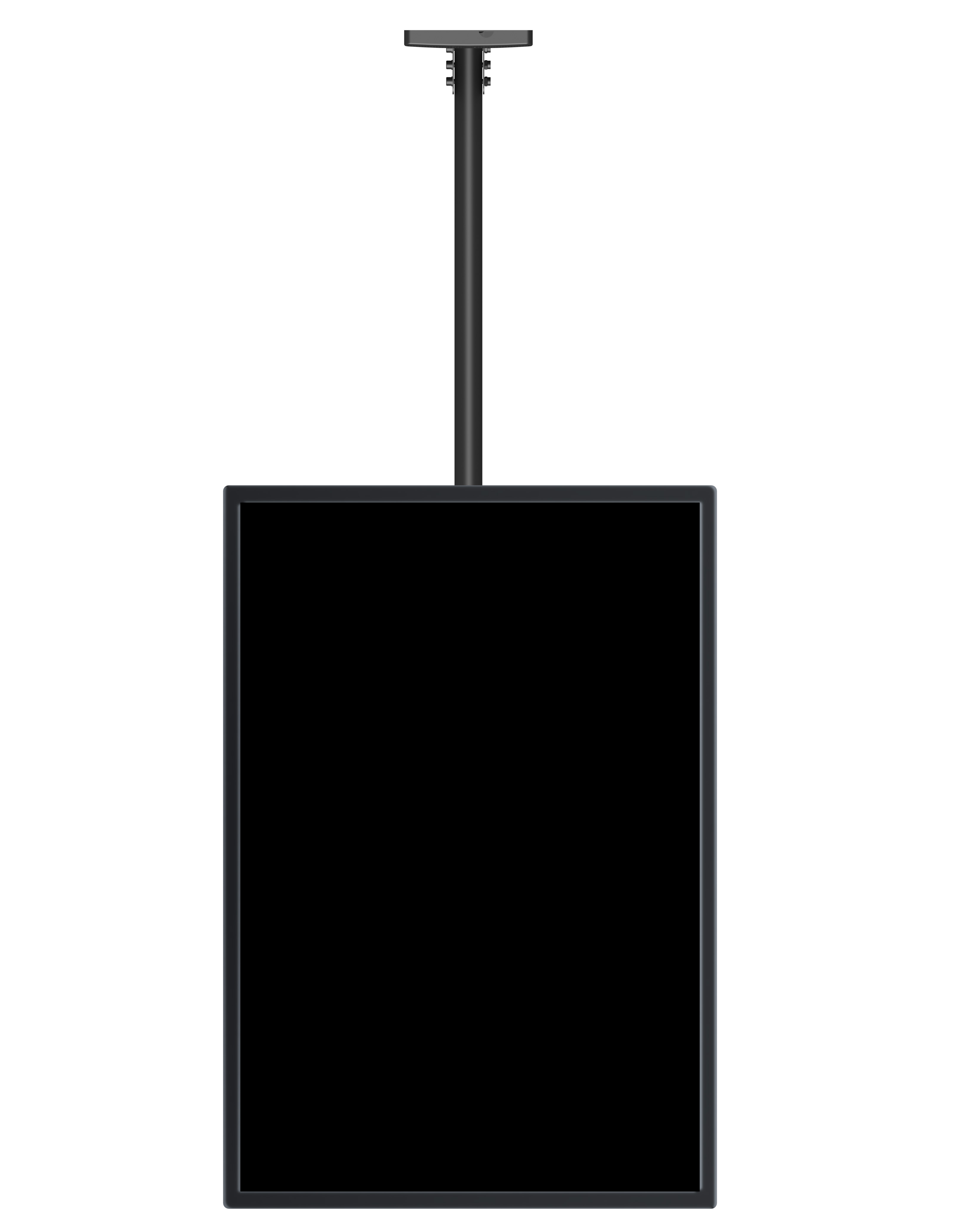

Change the screen from landscape to portrait by turning the screen without demounting it.
- Description
Hightlights

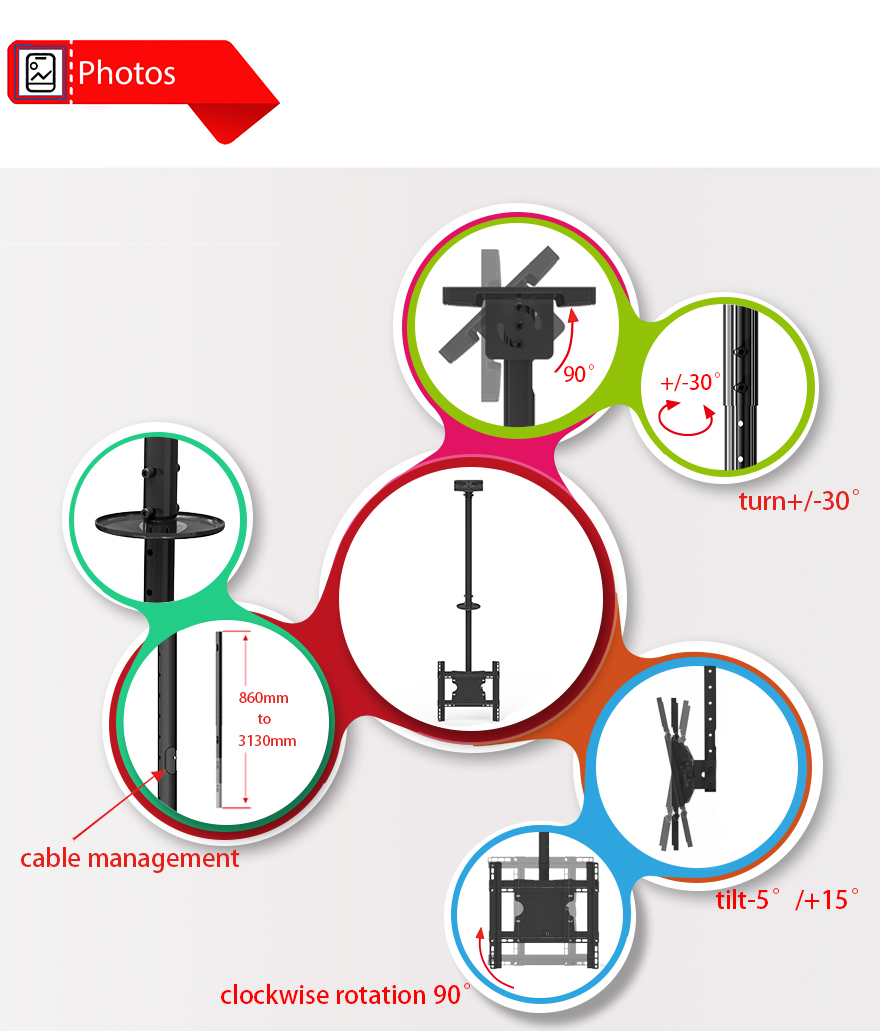

. Portrait or landscape position of screen possible by demounting.
. Variable tilt with locking pin mechanism for precise positioning.
. Integrated cable management routes cables through ceiling plate.
. Power click install for easy, fast and safe installation.

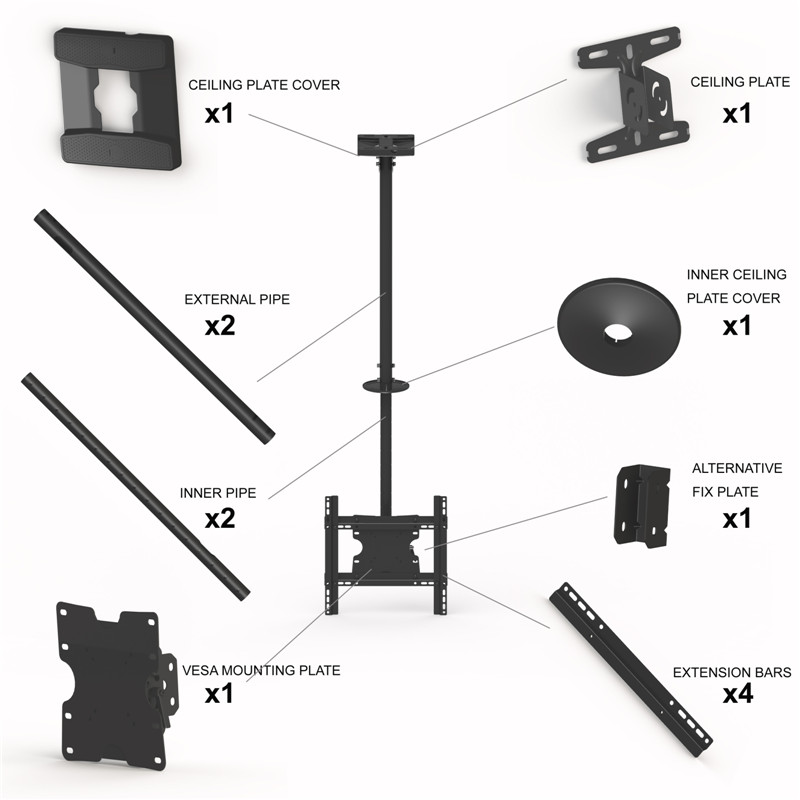

. Ceiling plate included.
. Complete hardware kit included.
Specification
|
Model |
D1540 |
|
Support TV Size |
32"-65" |
|
VESA |
from 100x100 to 400x400mm |
|
Tilt |
-5° ~ 15° |
|
Turn |
-30°~ +30° |
|
Max Load Capacity |
70kg(154lbs) |
|
Clockwise rotation |
90° |
|
Material |
Steel Construction |
|
Color |
Black & White |
