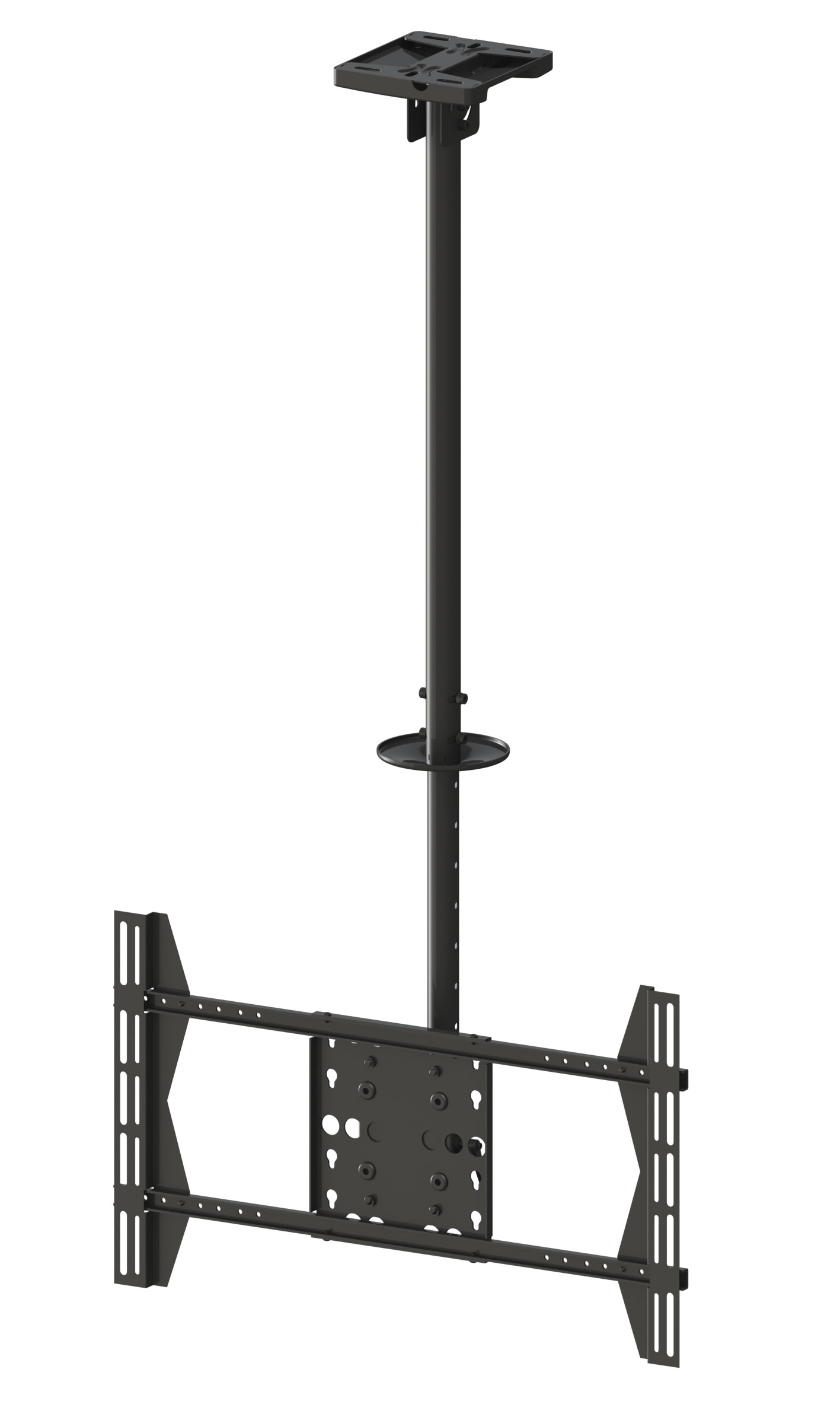

Large TV Ceiling Mount-D1570

Large TV Ceiling Mount-D1570

Category: Ceiling Mount

Name: Large TV Ceiling Mount-D1570

Date: 2016-10-08

Ideal for any large screen ceiling application – whether TV viewing or digital signage.
Widely used in a variety of environments this ceilingmount is truly versatile and made with most aspects and installation situations in mind.

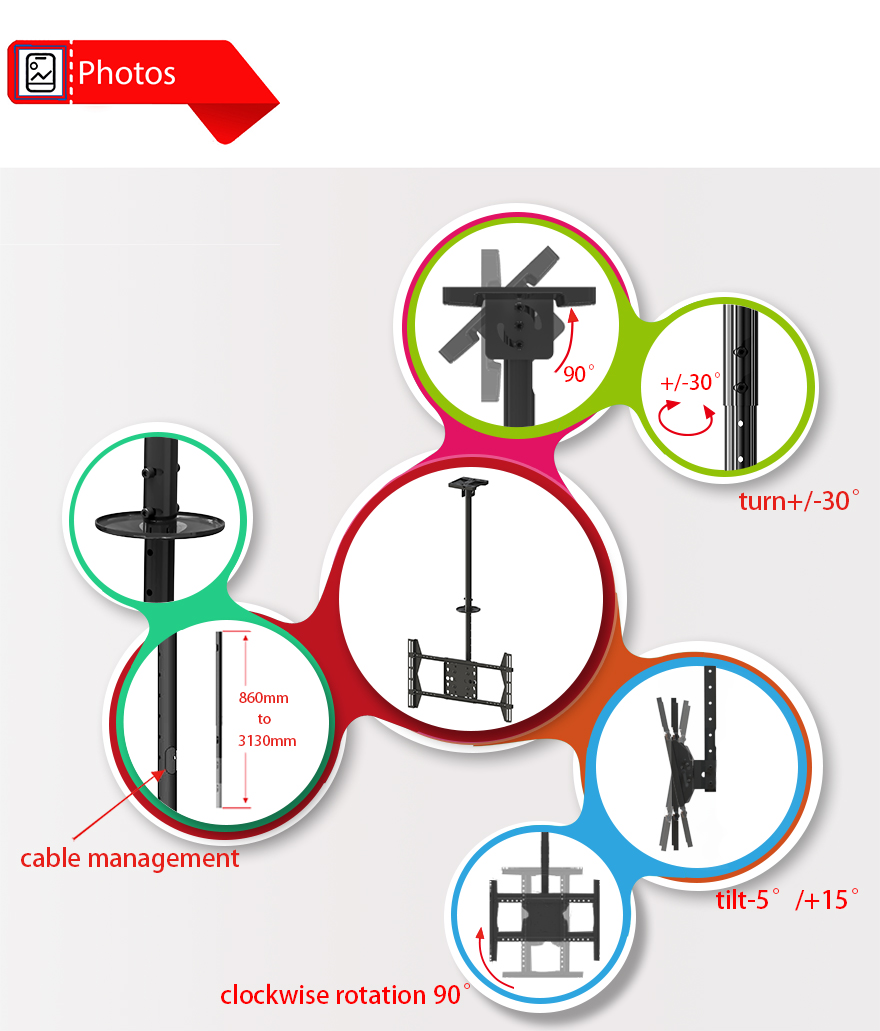

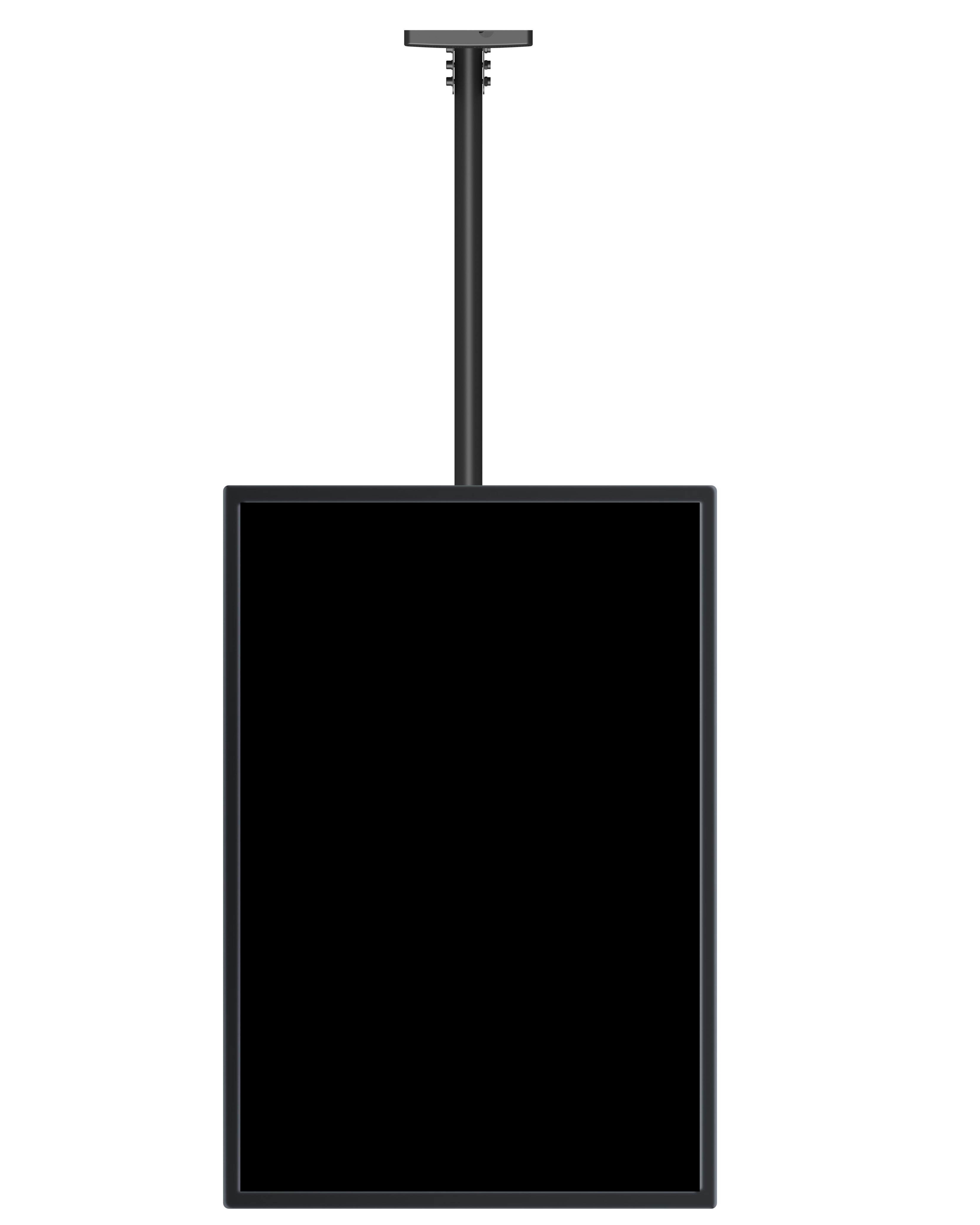

Change the screen from landscape to portrait by turning the screen without demounting it.

  • Description

Hightlights



.Portrait or landscape position of screen possible by demounting.

.Variable tilt with locking pin mechanism for precise positioning.

.Integrated cable management routes cables through ceiling plate.

.Power click install for easy, fast and safe installation.

.Ceiling plate included.

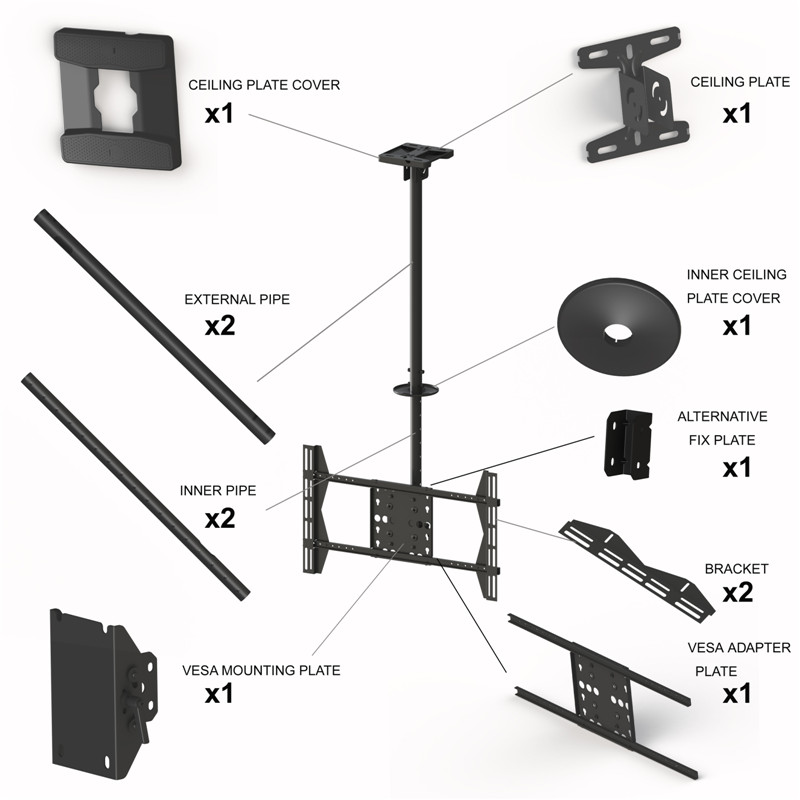

.Complete hardware kit included.



Specification



Model

D1570

Support TV Size

42"-80"

VESA

from 100x100 to 600x400mm

Tilt

-5° ~ 15°

Turn

-30°~ +30°

Max Load Capacity

80kg(176lbs)

Clockwise rotation

90°

Material

Steel Construction

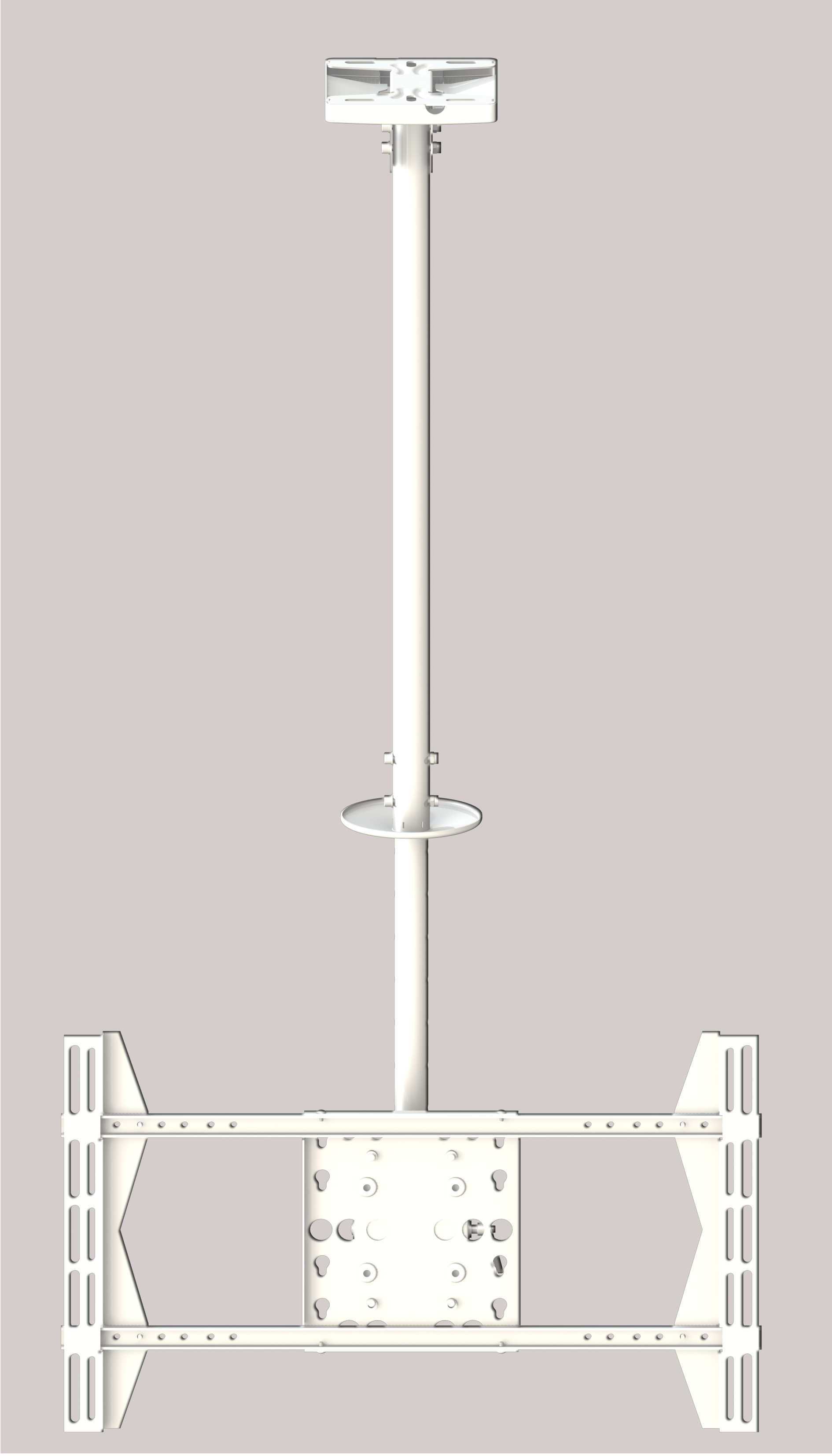

Color

Black & White
